Applications：
To be used for 55-110 dtex/96-192f 、83-167dtex/24-288f (0.3≤DTY dpf ≤1.0) POY spinning.
FEATURES：

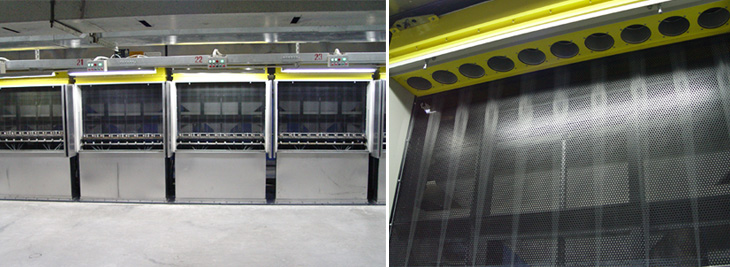

● This quenching system is suitable for superfine denier polyester filament spinning （0.3≤dpf≤1.0）and higher quality of superfine polyester filament can be acquired on this quenching system.
● Reliable linear seal is applied between the blowing head area and spinning beam.
● The height of non blowing area is adjustable according to the spinning process..
● The ascending and descending of the system are realized with pneumatic cylinders。
● The circular blowing head is accurately located by location pins.
● Air consumption is reduced by 80%.
● Blowing air barrel providing uniform quenching air can be easily cleaned and replaced when necessary
Technical specification
|
titer |
|
150-288f |
|
tenacity |
cn/dtex |
≥2.4 |
|
tenacity CV |
% |
≤3.0 |
|
elongation |
% |
120±4 |
|
elongation CV |
% |
≤4.0 |
|
uster CV |
% |
≤0.9 |
|
Item |
Unit |
Data |
|
Model |
|
ARQ |
|
Denier/holes |
dtex |
50-200/96-380 |
|
Dpf |
dtex |
0.3-1.0 |
|
Winding speed |
m/min |
2500-3500 |
|
Spinning method |
|
Extruder or direct spinning |
|
Ends/pos. |
|
8、10 |
|
Spinneret |
mm |
φ75、φ85、φ95 |
|
Spin pack |
|
Bottom-mounted cylinder |
|
Quenching chamber |
|
Circular blowing |
|
Guide roller |
mm |
φ160×150 |
|
Winder |
|
Automatic winder |
